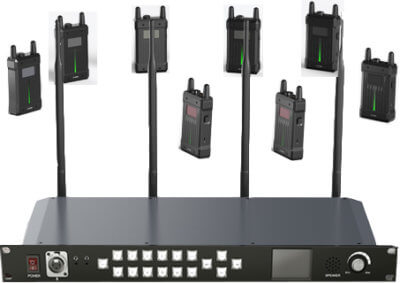

The 1010 Intercom SUPPORTS L9GHZ /2.4GHZ FREQUENCY BAND WITH 1 XED PART, 8 PIECE PORTABLE PARTS, 2 PIECE LOCAL RJ45 WIRELlNE VOICE CONNECTED BY 4 PIECES EXTERNAL ANTENNAS. IT
MAXIMUM SUPPORTS 11 SIMULTANEOUS VOICE CALLS. IT SUPPORTS WIRELESS AND WIRED INTERNAL TALLY. THE WIRED INTERNAL TALLY CAN CONNECT TO THE SWITCHER OUTPUT. THE WIRELESS INTERCOM TRANSMISSION GUARANTEED DISTANCE IS UP TO lOOOFT.
Description
IT SUPPORTS FULL-DUPLEX WIRELESS COMMUNICATION AND NETWORK,
SERIAL PORTS REMOTE OPERATION. USER CAN CONTROL AND UPGRADE
THE SYSTEM BY GUI. THE INDUSTRIAL METAL CASE OF THE SYSTEM IS
STABLE AND RELIABLE AS A BIG PLUS FOR YOUR TESTING EXPERIENCE.
• TELECOM-LEVEl VOICE QUALITY, INTERCOM GUARANTEED DISTANCE RANGE UP TO 300M FULL-DUPLEX W IR ELESS COMMUNICATION
SUPPORT FIXED PART, 8 PCS PORTABLE PARTS, 2. PCS LOCAL RJ45 WIRELINE VOICE, MAXIMUM SUPPORT 11 SIMULTANEOUS VOICE CALLS
4 PIECES EXTERNAL ANTENNAS Y7-36VDC WIDE VOLTAGE IN PUT SUPPORT NETWORK, SERIAL PORTS REMOTE OPERATION INDUSTRIAL MENTAL CASE, STABLE, RELIABLE.
A · 1X FIXED PART
• 4X PORTABLE PARTS
B • 1X FIXED PART
• 8X PORTABLE PARTS
Power Consumption Less than 5W
Frequency Band 1.9GHz 12.4GHz
Modulation Mode GFSK
Transmission Power Max 24dBm
Receiver Sensitivity -92dBm
Bandwidth 1.728MHz
Loudspeaker Power Less than 3W
Power Switch; XLR Microphone; 3.5mm Microphone; 3.5mm Earphone;
Number Keys Operation Panel (Eypad): Mute Button; Call
Interface Button; Scroll Up Button; SET Button; Mode Button; Scroll Dovm
Button; LCD OSO Display; Speaker; Speaker Volume knob; Antenna
Connector; VGA Tally Input , IntercomfTally; LAN Upgrade/Control
Port: DC power Input ; Ground Connection
Additional information
| Wireless Products By Range | 1000 Feet / 305 Meters |
|---|
