SI-KVM4260W/2ke/kn

Description

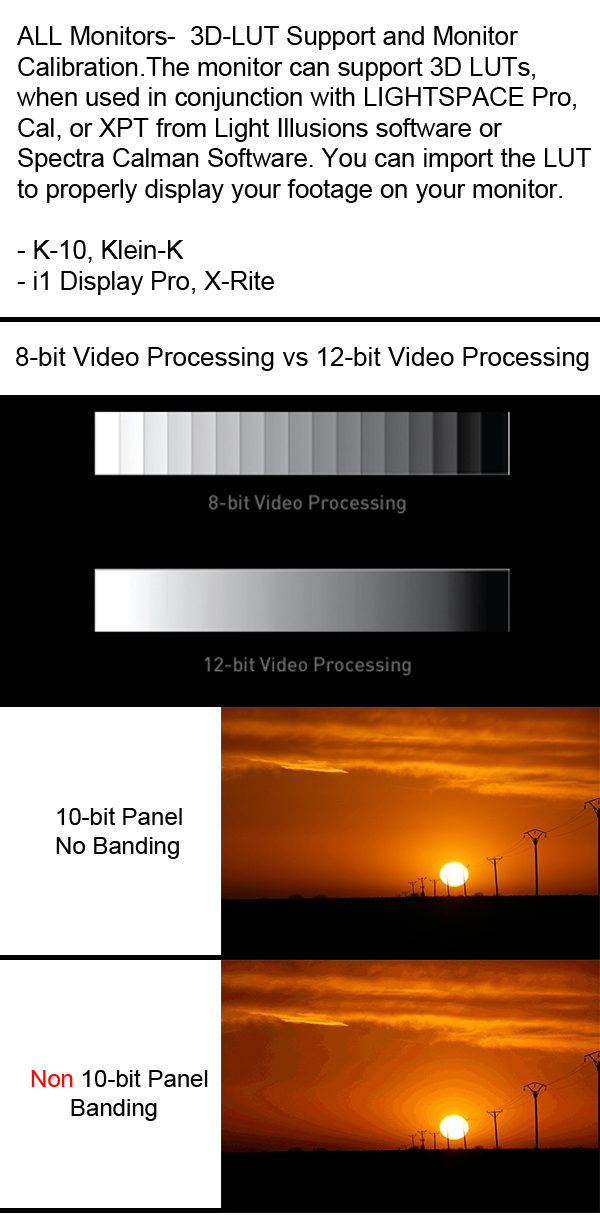

3G/ HD/ 12 Bit Processing/ 10bit Panel/ View 178/ Res. 1920×1080/ +2inputs/ 3DLut-User/ Bright: 450cd/m2/ Contrast: 1300:1/ Waveform/ Vectorscope/ Histogram/ PIP & PBP

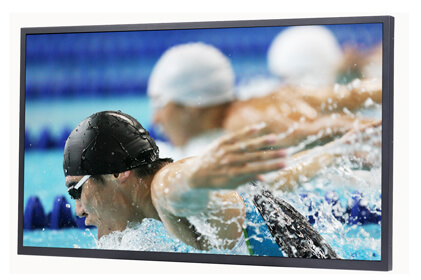

This 42 inch has Dual Enter-Menu Knobs, True 10bit LCD. With 12 Bit Signal Processing, 3G and 4:4:4 Support.  This high-performance LCD monitor offers native 1920 x 1080 full HD resolution, PBP/PIP, full video formats and professional features.True color processing with full broadcasting functions such as Waveform, Vectorscope, Histogram, Pixel Meas. Range Error

Product Highlight

• 42 1920×1080 Resolution
• LED backlight
• Wide Viewing Angle 178°(H)/178°(V)
• 3G/HD/SD-SDI Input&Loop through
• Composite&Component Input
• Support 3G-SDI, 4:4:4 signals (SMPTE 425M A/B)
• Dual Pictures (PIP/PBP) for 2 SDI Signals
• PIP/PBP Size / Position Adjustable,Alpha Blending( PIP )
• PIP/PBP in the rapid swap
• Waveform(Y/CbCr/Wide Type, Waveform Alarm)
• Vectorscope (Vector Scale 75%/100%)
• Histogram (Y / RGB)
• Pixel Measure(Y/R/G/B Values Comparison)
• Picture Flip
• ×9 Zoom
• H/V Delay
• Focus Assist
• Blue Only/Mono
• False Color/Zebra
• 8ch Embedded Audio Meter(H/V)
• Full scan/OverScan
• Time Code VITC1, VITC2, LTC
• PAL/NTSC/SECAM
• Various Markers
• Image Size Selectable
• RS-232 Remote Control
• Tally

Specifications

Display Size	42
High Resolution	1920×1080
Aspect Ratio	16:9
Wide Viewing Angle	178°(H) / 178°(V)
Pixel Pitch	0.3638×0.3638(mm)
Color Depth	1.07B
Back Light	LED
Brightness	450cd/m2
Contrast Ratio	1300:1

Input

2 × BNC	SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)
3 × BNC	YPbPr/Video/Y/C
1 × HDMI/DVI/VGA	HDMI/DVI/VGA Input

Output

2 × BNC	SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)
1 × BNC	Video

Compatible SDI Formats

SMPTE-425M-A/B	4:2:2 YCbCr 10-bit	1080p(50/59.94/60)
	4:4:4 YCbCr/RGB 10-bit 4:4:4 YCbCr/RGB 12-bit	1080i(60/59.94/50)
		1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
	4:2:2 YCbCr 12-bit	1080i(60/59.94/50)
		1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
	4:4:4 YCbCr/RGB 10-bit	720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-274M	1080i(60/59.94/50)
	1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M	720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-260M	1035i(60/59.94)
SMPTE-125M	480i(59.94)
ITU R BT.656	576i(50)

Audio In/Out

SDI Audio In	8 Channel Embeded Audio
Audio Meter Display(VU+PPM)	H/V Audio Level Meter Display
Analog Audio Input	3.5mm Headset Switch Cable
Audio Headset Output	3.5mm Headset Jack
Built-in Speaker	2.5W×2
